智能懸掛輸送系統

SMART RAIL CONVOYOR SYSTEM

系統理念

DESIGN PHILOSOPHY

模塊化家族設計

Modular Family

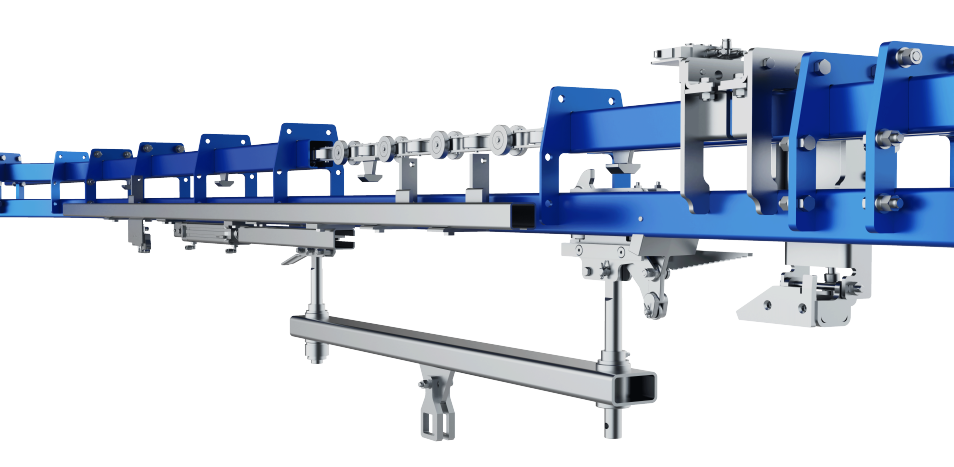

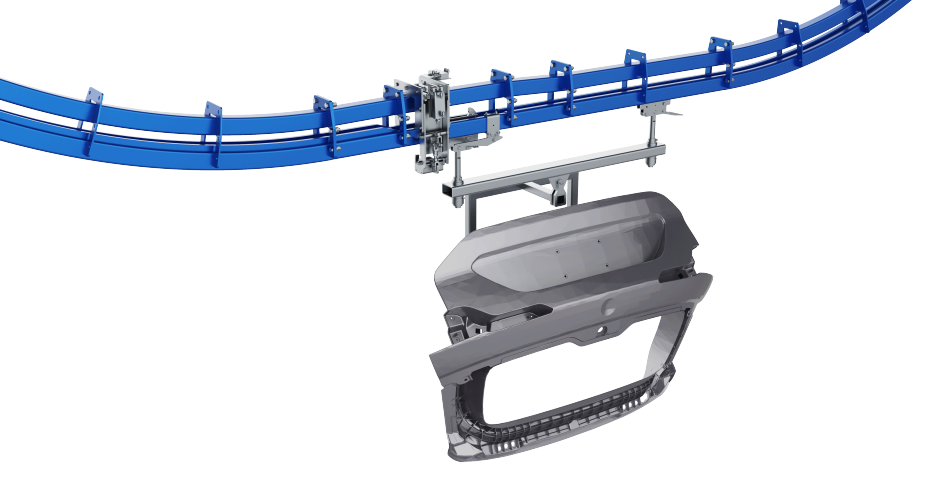

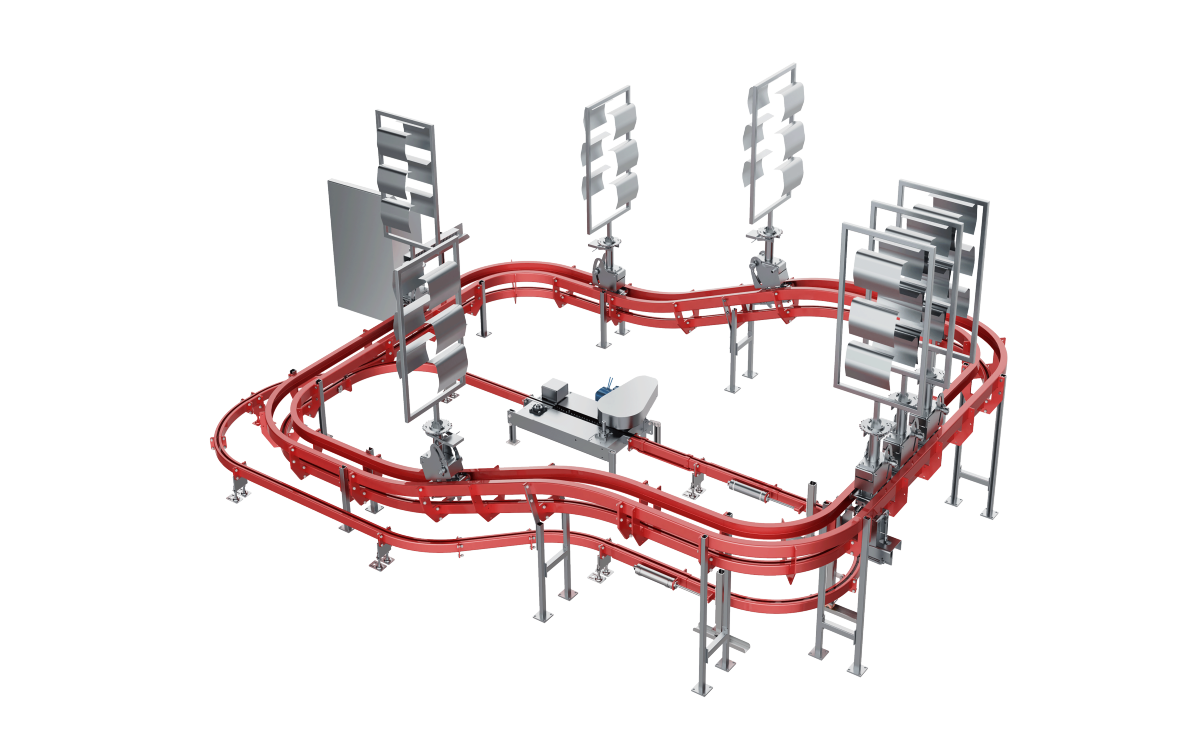

懸掛型積放式輸送

Suspended Accumulating Convoyor

2大懸掛輸送體系

2 SUSPENDED CONVOYOR SYSTEM

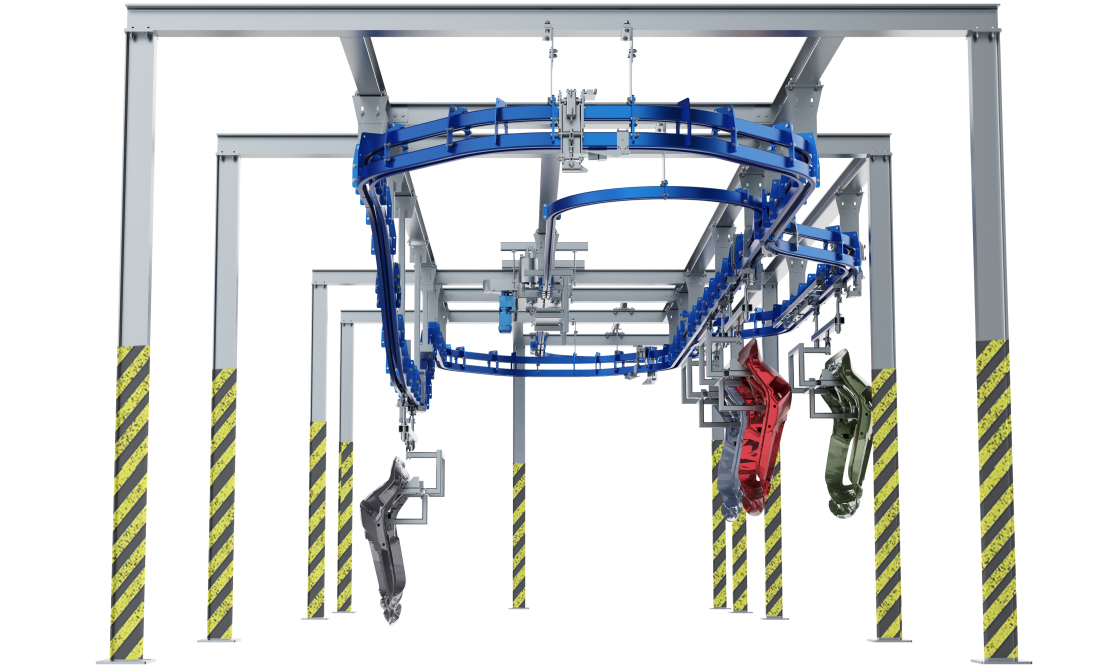

懸掛型積放式輸送

Suspended Accumulating Convoyor

全新一代高度可靠的重型地板輸送機，旨在滿足客戶處理更大，

更重和不平衡夾具的全面需求，提升生產能力和彈性。

4個水平導向軸承和完全可調的軌道部分可實現高精度的導向。

由于限制使用驅動單元和傳感器，因此與傳統的橇式系統或

輥道輸送機相比，需要最低限度的控制系統。

A new generation of highly reliable heavy floor conveyors, designed to meet the

needs of customers with larger handling capacity. More heavy and unbalanced

fixture overall demand, improve production capacity and flexibility. Four horizontal

guide bearings and fully adjustable track section can achieve high precision guidance.

Due to restrictions on the use of drive units and sensors, the traditional skid mounted

system or Compared with roller conveyor, minimum control system is required.

我們提供范圍廣泛的懸掛積放輸送系統，

從簡單的手動系統到再到復雜的PLC系統。

現已開發了6種不同的型號，從重量幾克到10000千克不等。

所有系統都是針對表面精加工行業的極端情況而首先開發的，

并且旨在以最小的維護量實現高效率的運行。

We offer a wide range of suspended stacking and conveying systems,

From simple manual system to complex PLC system.Six different models

have been developed, ranging from a few grams to 10000 kilograms.

All the systems were first developed for the extreme conditions of the

surface finishing industry,and it aims to achieve efficient operation with

minimum maintenance.

鵬亞提供高度靈活的家族化模塊設計，從原生層面為系統提供極高的通用性，拓展性，既能適應當前的生產場景，又為后續產線的靈活調整預留了巨大的彈性。

Pengya provides highly flexible family module design, which provides high universality and expansibility for the system from the original level. It can not only adapt to the current production scenario, but also reserve great flexibility for the flexible adjustment of subsequent production lines.

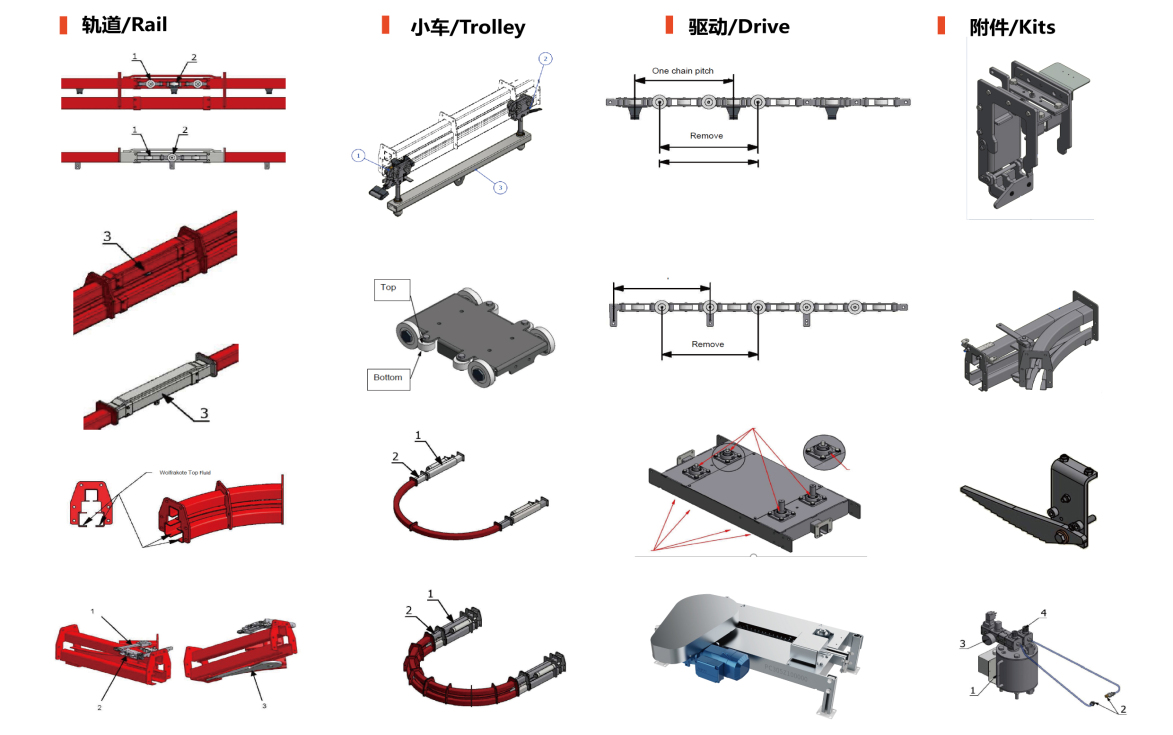

模塊化家族設計體系

MODULAR　FAMILY

系統設計，

模塊組合

Modular System

懸掛型積放式輸送

多種場景，

靈活拓展

Modular Flexible

模塊設計，

系統延展

Modular Design

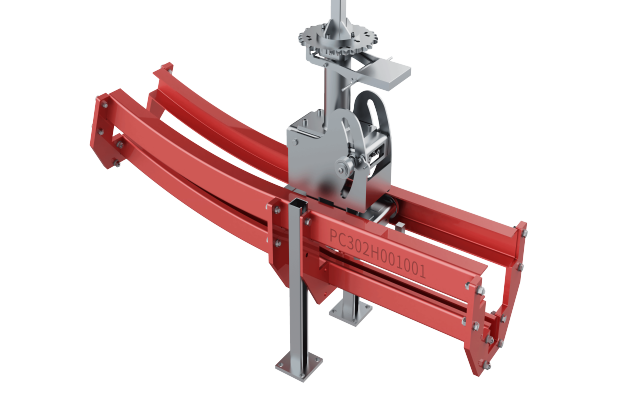

為保證系統成本，因此小車的設計非常注重系統內運行平順。

無需使用推車機，即可實現小車在不同線路間的切換。

The leading edge PENGYA trolley- and accumulation stop

design is the safeguard for instant and extremely reliable

separation of wagons in theaccumulating zones.

領先的鵬亞小車和停止器的設計，為小車組在積放區快速可靠

的車鏈分離提供了保障。小車與輸送機鏈條之間無摩擦式分離，

在積放時實現有效降噪。

The system handles accumulation noiseless with non-friction

disengagementof the trolleys from the conveyor chain drive.

在配置輸送機布局時，通過采用模塊化的構件，為系統提供了高

標準的靈活性和自由度。除此之外，高精度的鵬亞高端組件和質

量檢測確保了全球客戶都能在嚴苛環境下完全放心地運行。

Through the use of modular components, the system is the

paramountstandard of flexibility and liberty when it comes to

configuring conveyorlayouts. On top of that the rigorous and

renowned PENGYA high-endcomponents and quality testing,

ensures that clients worldwide can runour systems in harsh

environments with total confidence.

鵬亞提供高度靈活的積放式輸送機，其承載能力可達500公斤。

通過簡單可靠的小車組積放，能夠?qū)崿F(xiàn)緩存區內45°或90°或

直線排列放置。

To ensure low system costs, the system has a minimal need

for transferunits, as it is designed with a highly smooth trolley

transfer from oneconveyor circuit to another.

節能環保，

超低能耗

Eifficiency

SUSPENDED ACCUMULATING CONVOYOR SYSTEM

四大優勢，引領行業

Modular Advantages

系統設計，

模塊組合

Modular System

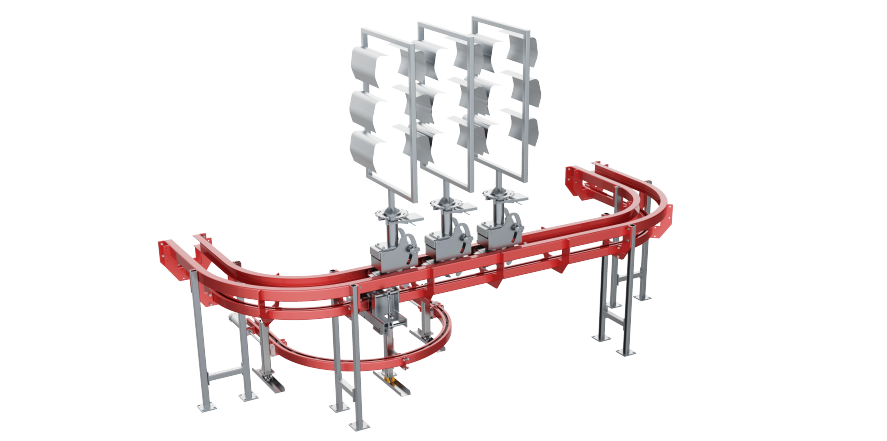

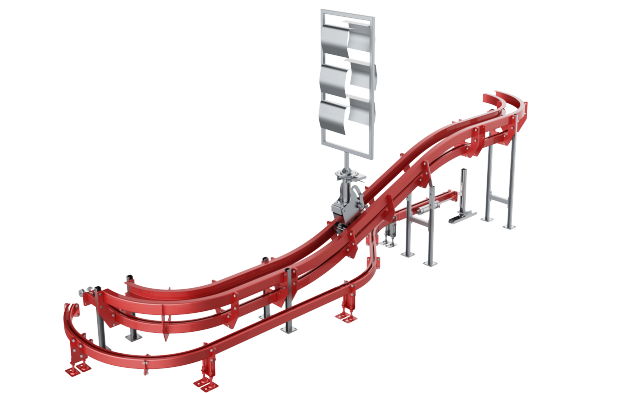

地軌型積放式輸送

多種場景，

靈活拓展

Modular Flexible

模塊設計，

系統延展

Modular Design

車組帶有的四個到六個水平導向輪可確保導向精度的提高。

這意味著：更高的生產質量更高的產出效率。

Furthermore, the four to sixhorizontal guide wheels allow

forincreased guidance accuracy.This means:higher production

quality and Increased output efficiency.

輸送系統關鍵部件維護簡單,只需要極少的維護和用戶培訓,

根據客戶需求，此地面輸送系統的單車負荷可改為150公斤。

Easy access to the vital parts of the conveyor system, only a

minimum of maintenance and user training is required.

On customer request this floor conveyor system can be

modified to a 150 kg load capacity.

緊湊的設計使整體高度得以降低，可減少工藝區域的空間占用

相對于傳統的輸送系統，如皮帶式和滾筒式輸送機，此輸送機

的解決方案更節省空間。

The compact design allows a low overall height and takes up

less space in the process areas.

地面?zhèn)魉拖到y(tǒng)憑借其對車組的穩定雙側支撐，為輸送一些大件、

搖晃不穩的夾具或工件提供了十分堅實的基礎。

T floorconveyor provides a very solid base for even very large

and unbalanced jigs / product carriers.

節能環保，

超低能耗

Eifficiency

RAIL ACCUMULATING CONVOYOR SYSTEM

四大優勢，引領行業

Modular Advantages

智能控制系統

Our conveyor system is only the "heart" of the built-in electrical control system.

The demand for system security and various system functions has grown rapidly in the past few years.

For more than 10 years, our internal control systems division has produced and built control and automation systems for conveyors.　Pengya's hardware and software functions are strongly integrated - high quality integration, no unnecessary interfaces.

We can provide:

· Connection with customer ERP system

· database coupling for order management

· Filing process data into PLC control system

Our software and control solutions are designed based on a common control concept from field to manufacturing execution system (MES). The control and software products we use have modular designs that can be used to develop

and implement custom solutions.

Simulation and visualization

Through system simulation and visualization, we have outlined the material flow available to customers.The larger the conveyor system, the more complex it is, the more important it is to have an overview of all process steps and the status of the project to be addressed.The efficiency of the process ensures productivity and gives our customers a competitive advantage.

INTELLIGENT CONTROL SYSTEM

場景驅動，行業定制

SCENARIOS　DRIVEN

我們的輸送機系統僅是內置電氣控制系統的“心臟”。

系統安全和各種系統功能的需求在過去幾年中迅速增長。

因此，用于我們的智能輸送機解決方案的控制系統變得越來越復雜。

10多年來，我們的內部控制系統部門為輸送機生產和建造了控制和自動化系統。

鵬亞的硬件和軟件功能強大地結合在一起-集成質量高，沒有不必要的接口。

我們可以提供：

與客戶ERP系統的連接

用于訂單管理的數據庫耦合

將過程數據歸檔到PLC控制系統

我們的軟件和控制解決方案是根據從現場到制造執行系統（MES）的通用控制概念設計的。

我們使用的控制和軟件產品具有模塊化設計，可用于開發和實施定制解決方案。

模擬和可視化

通過系統模擬和可視化，我們概述了可供客戶使用的物料流。輸送機系統越大，越復雜，

所有過程步驟的概覽以及要處理的項目的狀態就越重要。

流程的效率可確保生產率，并為我們的客戶帶來競爭優勢。

智能懸掛輸送系統

SMART RAIL CONVOYOR SYSTEM

鵬亞智能科技（上海）有限公司自成立以來，運用自身的技術經驗及創新為多個行業做貢獻，

如：互聯網可視化企業資源管理軟件、物流\工廠自動化輸送系統、電子材料\印刷電路板壓合系統、

剪式升降裝備、機器人搬運系統、工業涂裝系統、環境能源裝備、高分子材料。

讓任何生產場所都變得更加智能，都能便捷、安全、高效地進行生產和智能化的管理，實現工業智能化的愿景

我們的理念是：創造價值，共同成長

鵬亞智能為數以百計的知名制造企業提供了智能制造相關的解決方案，幫助企業提高信息化，自動化，智能化水平，通過降本增效來提升整體生產運營效率，創造價值，同時提升生產體系的環保水平，實現可持續健康發展。與此同時，鵬亞智能在服務萬千客戶的過程中，特別是在與客戶共同面對新挑戰解決新問題的過程中，積累了大量寶貴的項目經驗，為日后面對更多挑戰提供優秀的解決方案提供了可以信賴的有力背書！

追求一流，引領變革，正道經營，共存共贏！
